3.5.1.1 Records of heat treatments of K-Monel parts shall be maintained.
The heat treatment process and serial number of each part which has been
heat-treated shall be included on these records.
3.6 Design and construction.
The design and construction shall be as
defined on NAVORD LD 162838,
3.7 Mechanical requirements. The tube door connector shall successfully
meet the following mechanical requirements:
3.7.1 Mating or unmating force. The tube door connector and breech
door plug of each mating cable shall fully engage and disengage with an
axial force of not more than 50 pounds with the "A" Type Cable (LD 162420)
and 60 pounds with the "B" Type Cable (LD 162531), when tested in accordance
with 4.5.2.
3.8 Electrical requirements. The tube door connector shall successfully
meet the following electrical requirements:
3.8.1 Dielectric strength. The tube door connector shall withstand a
voltage potential of 1000 volts ac when tested in accordance with 4.5.3.1.
3.8.2 Insulation resistance. The insulation resistance of the tube door
connector" assembly shall be greater than 70 megohms when measured with a
potential of 500-750 volts dc in accordance with 4.5.3.2.
3.8.3 Continuity. The tube door connector shall indicate continuity
at each of the 65 contacts when tested in accordance with 4.5.3.3.
3.8.4 Contact, conductor resistance. The maximum resistance of each
circuit shall be as shown in Table I when subjected to the test defined
in 4.5.3.4.

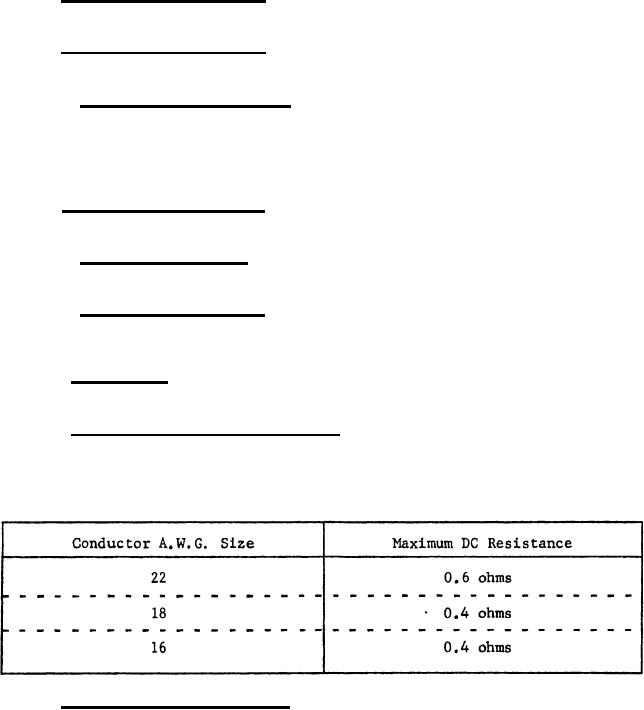

TABLE I
3.9 Environmental requirements. The cable connector assembly shall be
subjected to the following environmental conditions and shall meet the re-
quirements as specified herein:
4
