MIL-C-82632 Connector Kit, Splice, Single WireThis specification establishes the minimum requirements for the procurement of a single wire splice connector, DL 5545977. The connector joins the shipboard guidance wire to the torpedo guidance wire and maintains electrical continuity in seawater to a pressure of 1500 psig. The connector will accept wire sizes from AWG 25 to AWG 23 and is of one type and class.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22

MIL-C-82632A(OS

item by the contracor prior to the approval of the procuring activity or comple-

tion of inspection and tests on the preproduction model shall be at the con-

tractors risk. Accepted preproduction models will become the property of the

procuring activity and will be included in the quantity of connectors called for

in the contract or order.

Identification of samples.

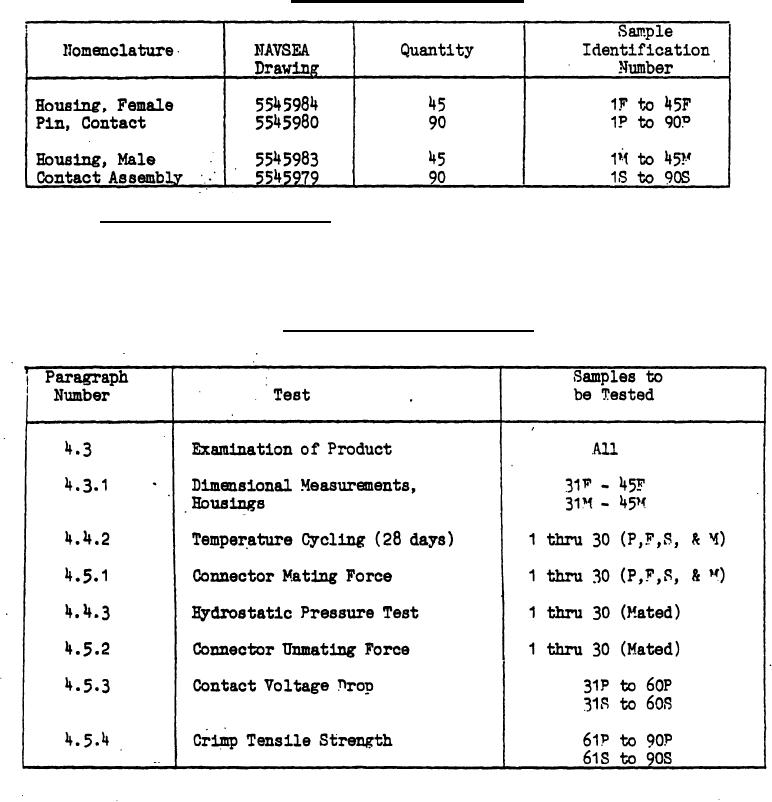

TABLE 1.

4.2.1.2 First article inspection. The preproduction model, selected in accord-

ance with 4.2.1 and Table I, shall be subjected to the impactions and tests of

Table II in the sequence listed. When specified in the contract or purchase

order, certified Inspection data covering the results of first article inspections

and tests shall be forwarded to the procuring activity.

TABLE II. First article test sequence
