MIL-C-82630 Cable, Electric, 65-ConductorThis specification covers requirements for the procurement of synthetic rubber-jacketed cable assemblies embodying 65 conductors. These cables are distinguished by their size, type of insulation, features of construction, and the general conditions of their service use.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17


MIL-C-82630(OS)
Note:
Dimensions are shown in inches.

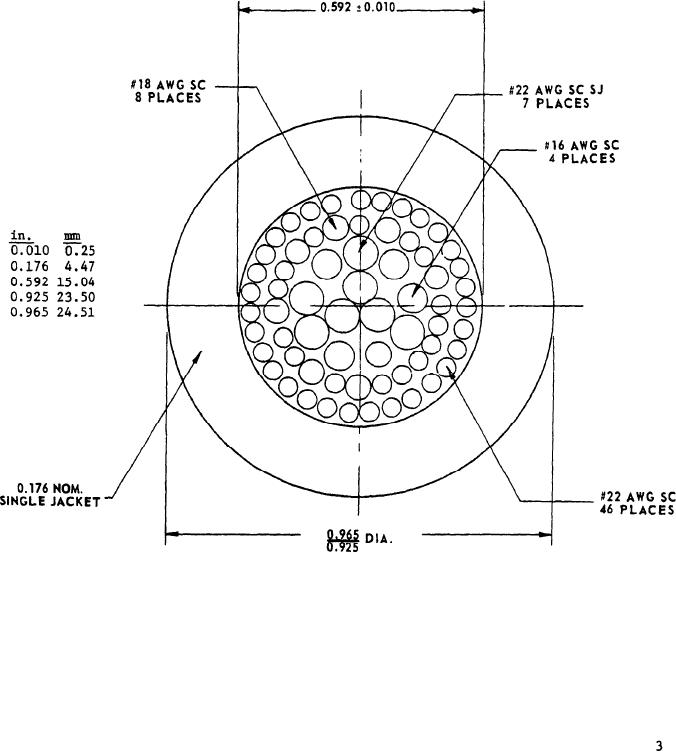

Figure 1.
Dimensions
and
Tolerances - Type I Cable.
